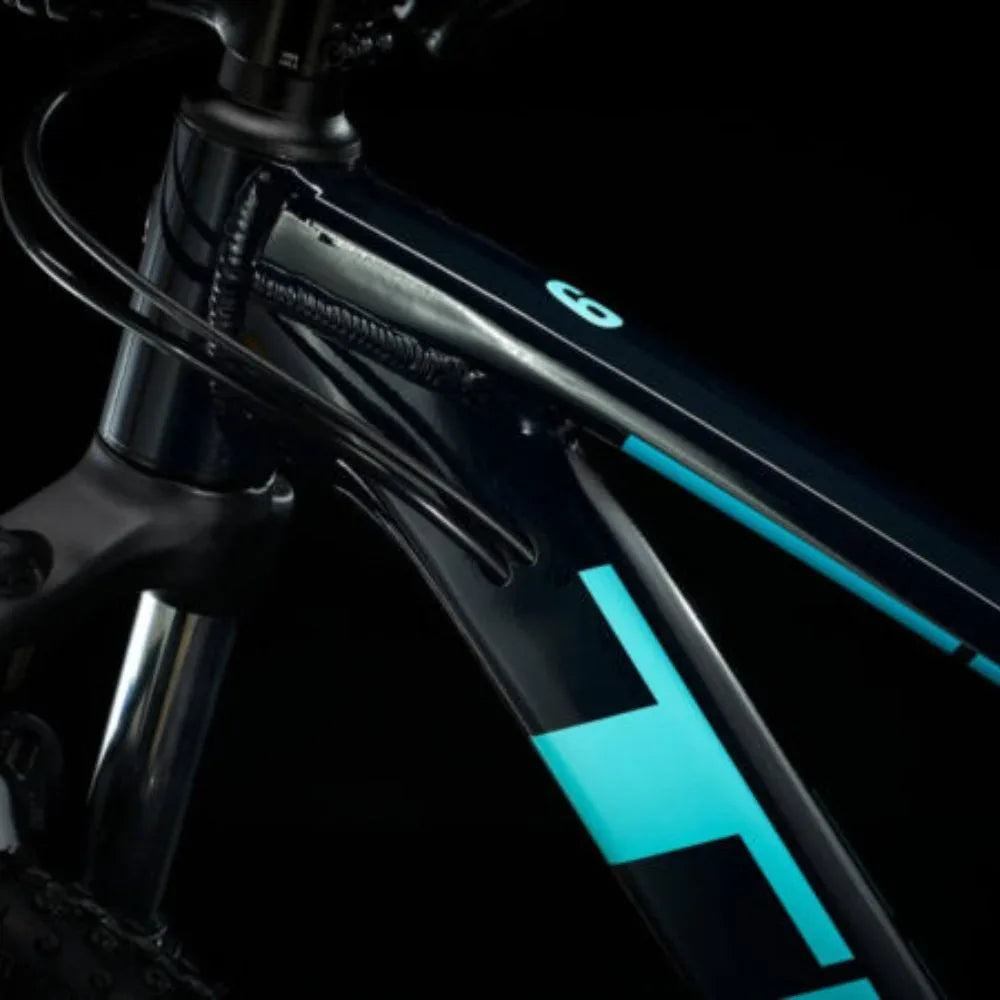

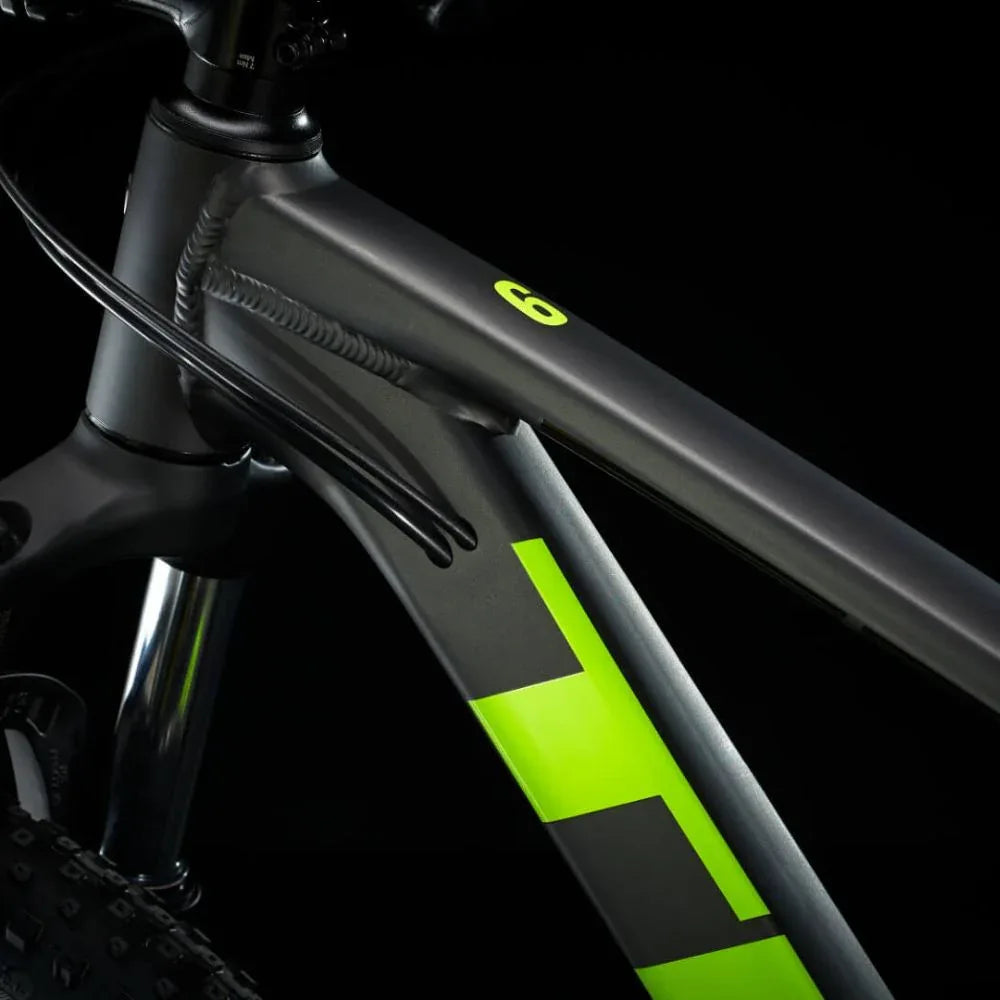

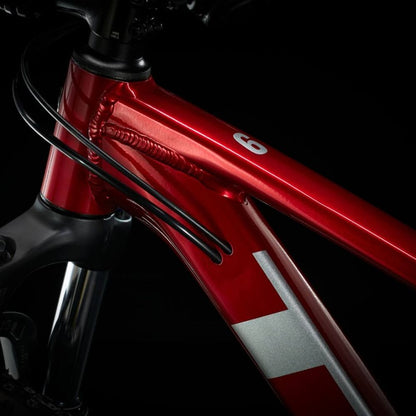

שלדה |

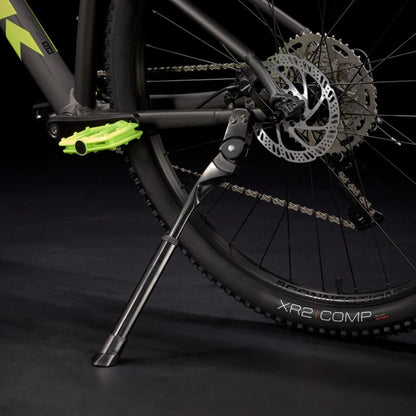

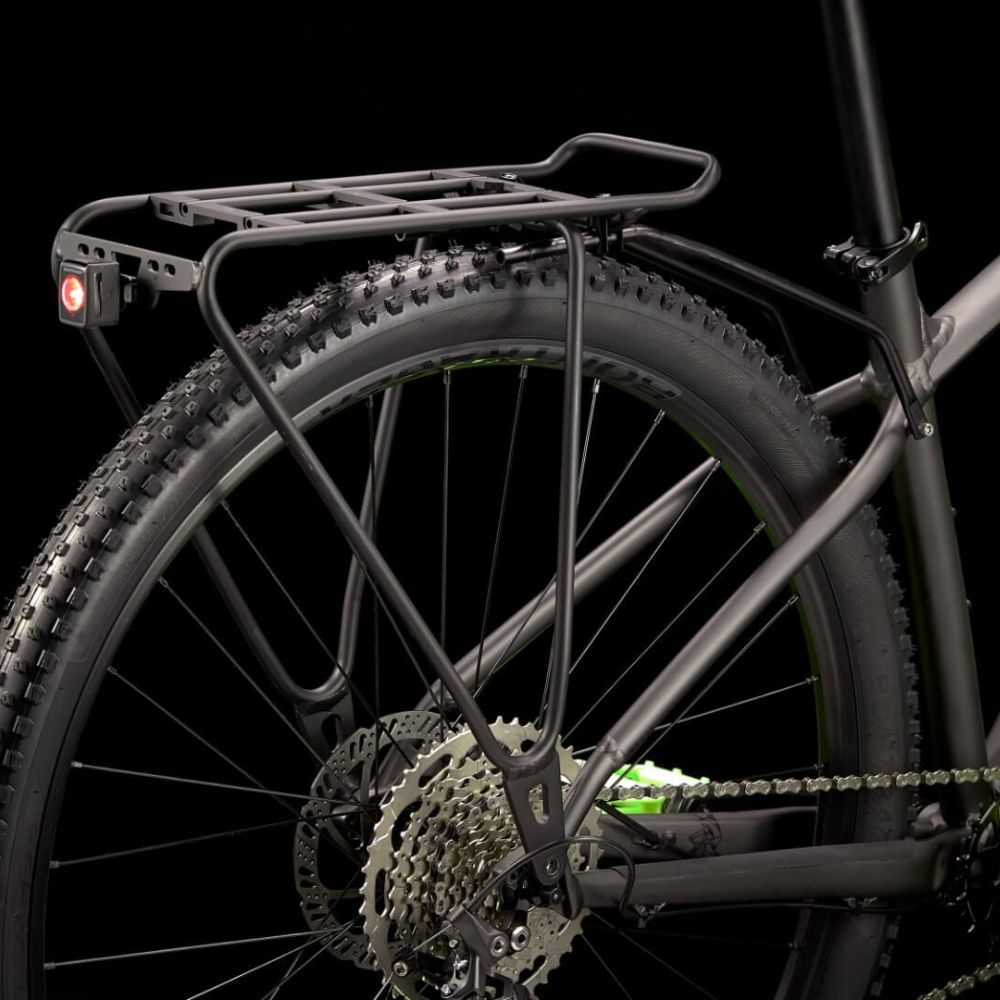

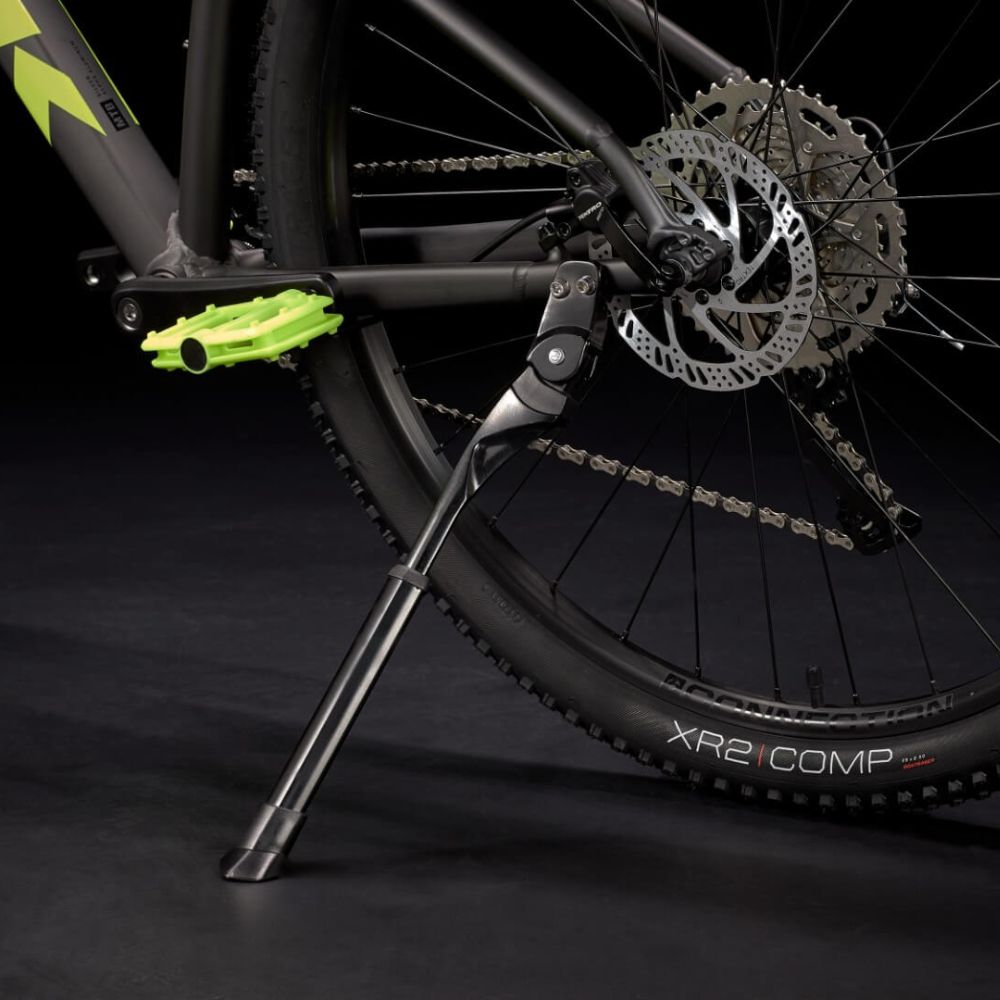

Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR
|

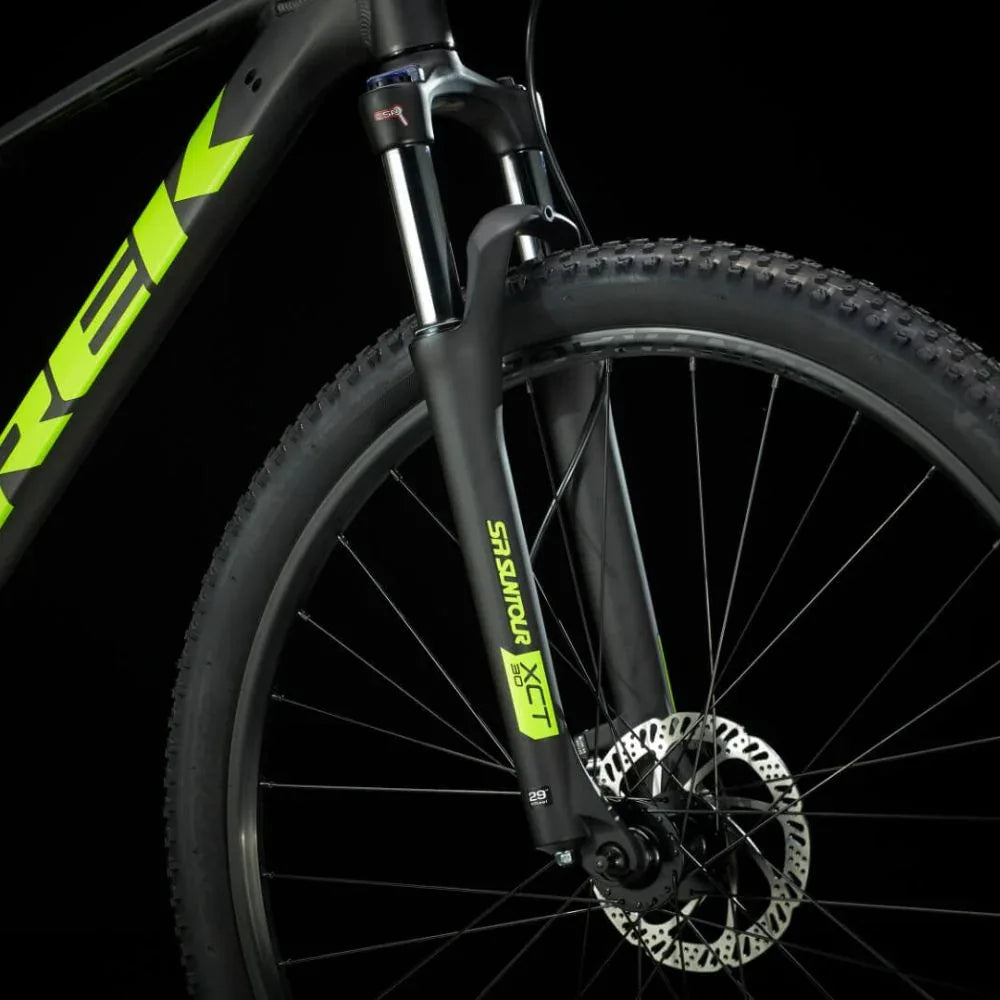

בולם קדמי |
גודל: XS
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
גודל: S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
גודל: M , ML , L , XL , XXL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
|
נאבה קדמית |
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
|
נאבה אחורית |
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
|
חישוקים |
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
|

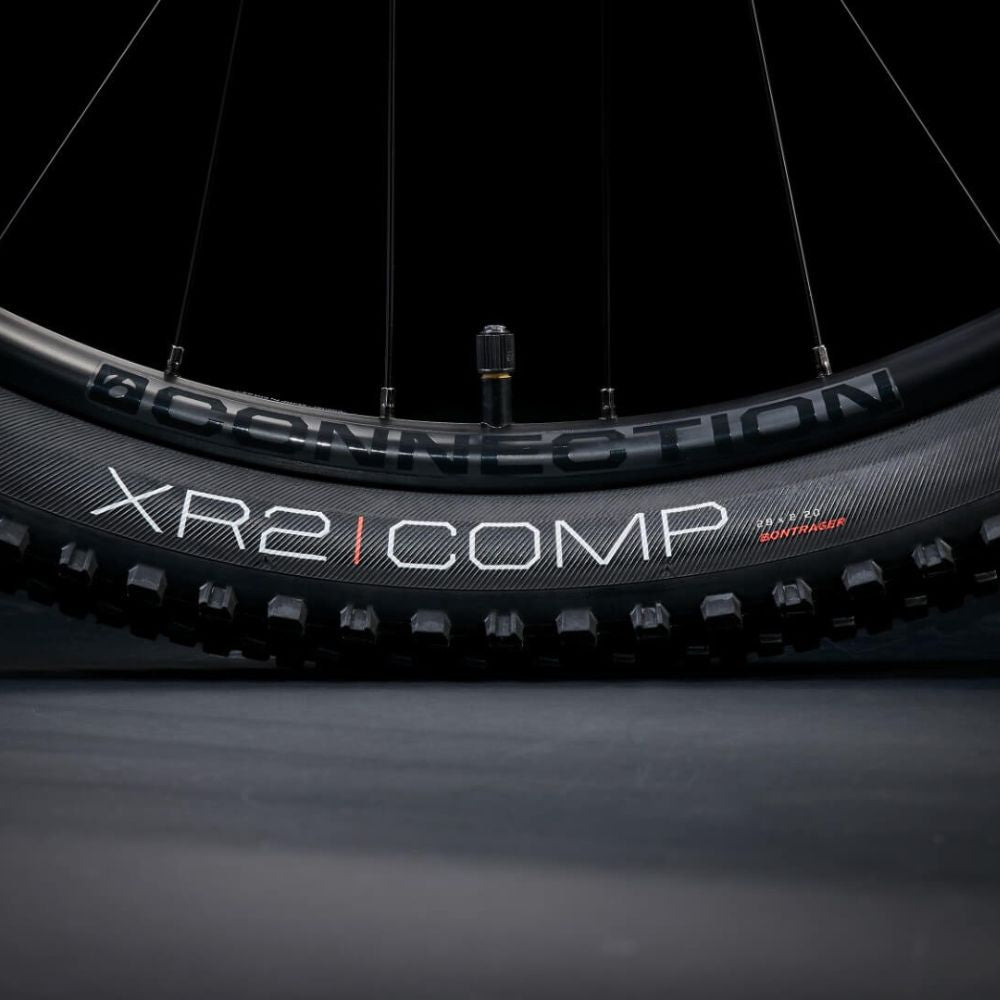

צמיגים |
גודל: XS , S
Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20"
גודל: M , ML , L , XL , XXL
Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20"
|
ידיות הילוכים |
Shimano Deore M4100, 10 speed
|

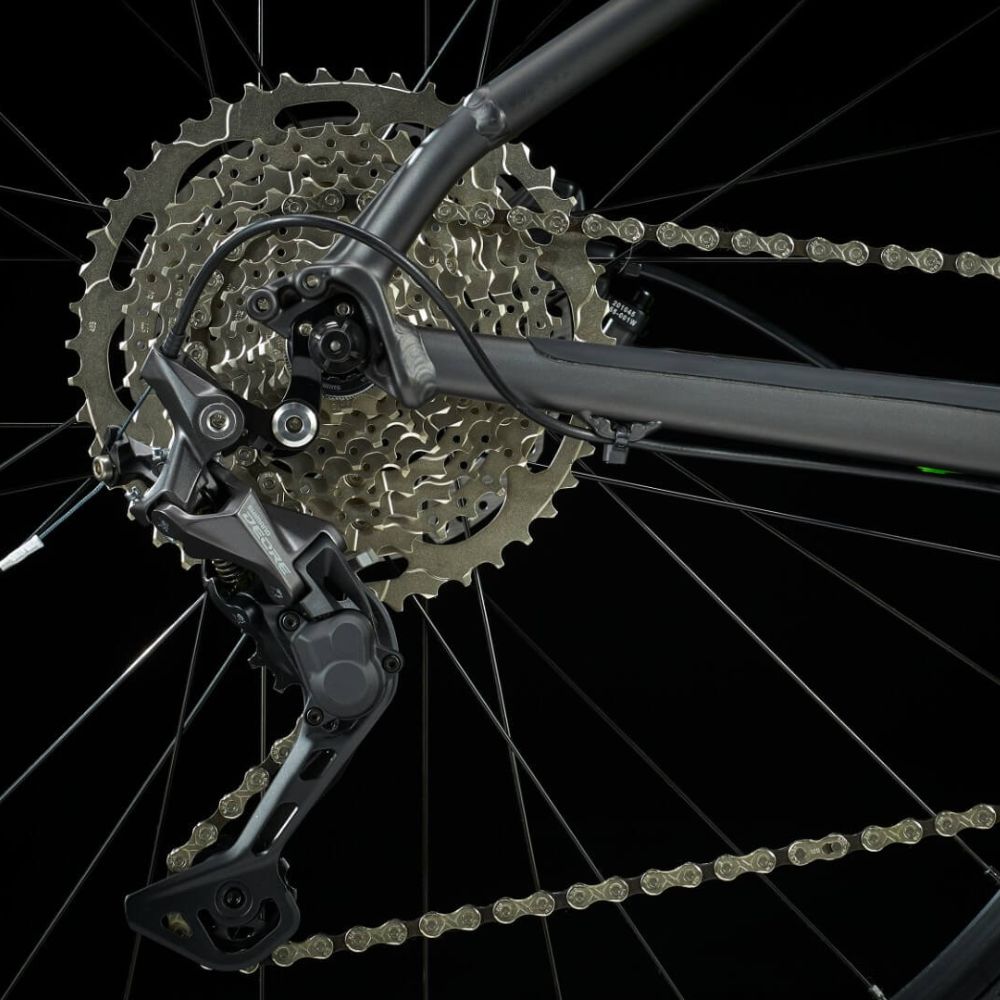

מעביר אחורי |
Shimano Deore M5120, long cage
|

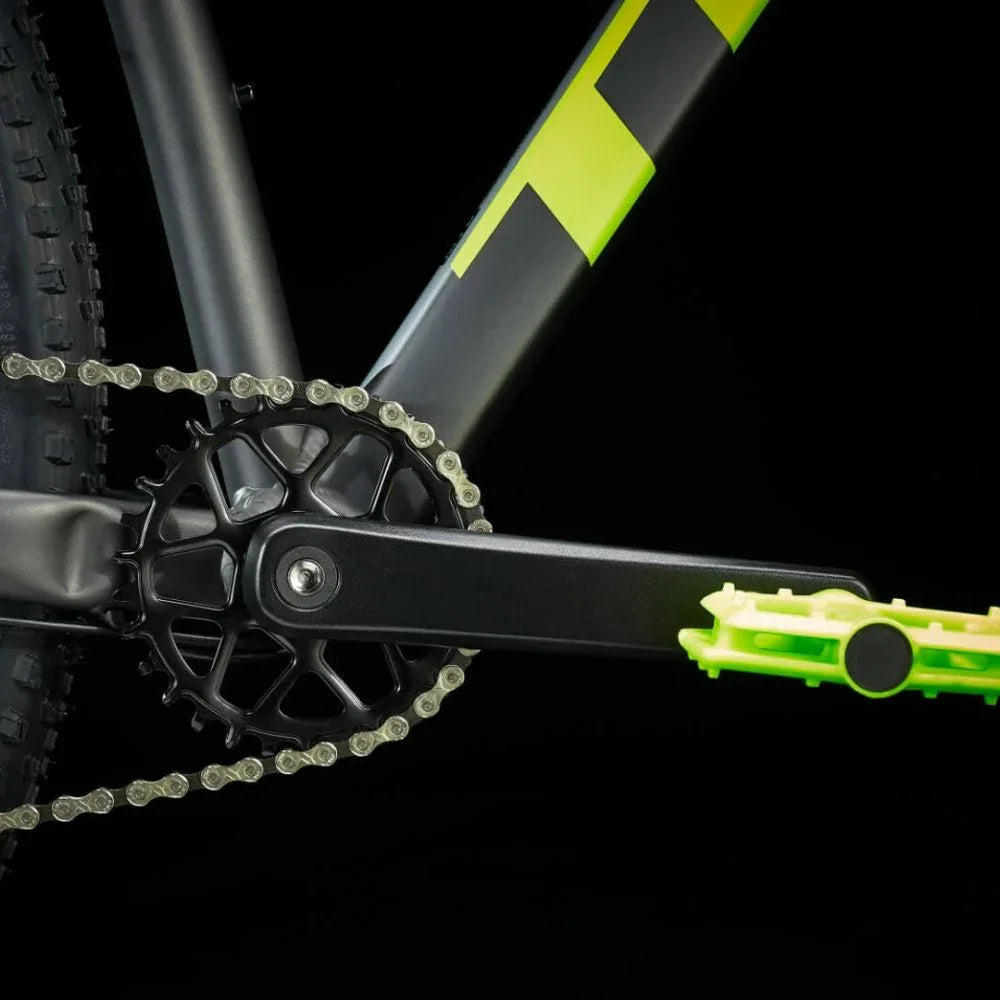

קראנק |
Prowheel C10Y-NW, 30T steel narrow-wide ring, 170mm length
|
ציר מרכזי |
VP BC73, 73mm, threaded cartridge
|
קסטה |
Shimano Deore M4100, 11-46, 10 speed
|
שרשרת |
KMC X10, 10 speed
|
פדלים |
VP-536 nylon platform
|

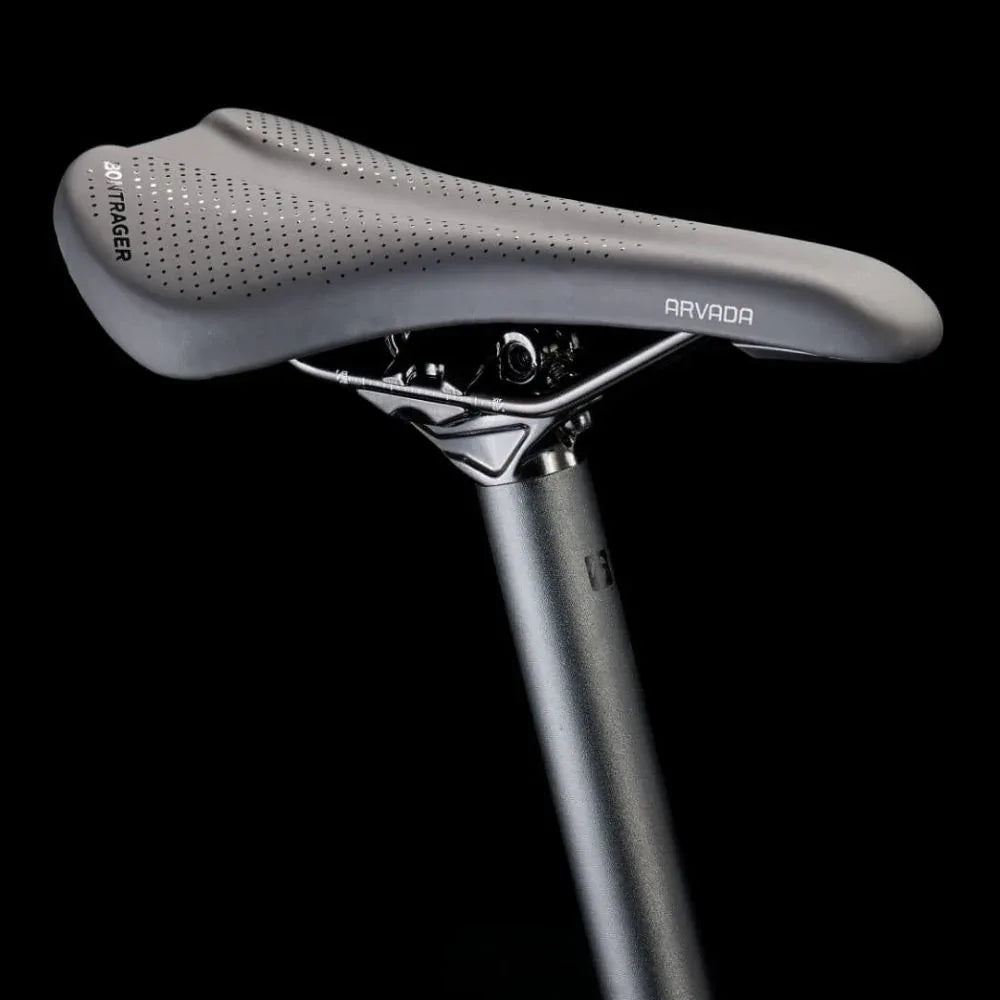

אוכף |
Bontrager Arvada, steel rails, 138mm width
|
מוט אוכף |
גודל: XS , S , M
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
גודל: ML , L , XL , XXL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
|

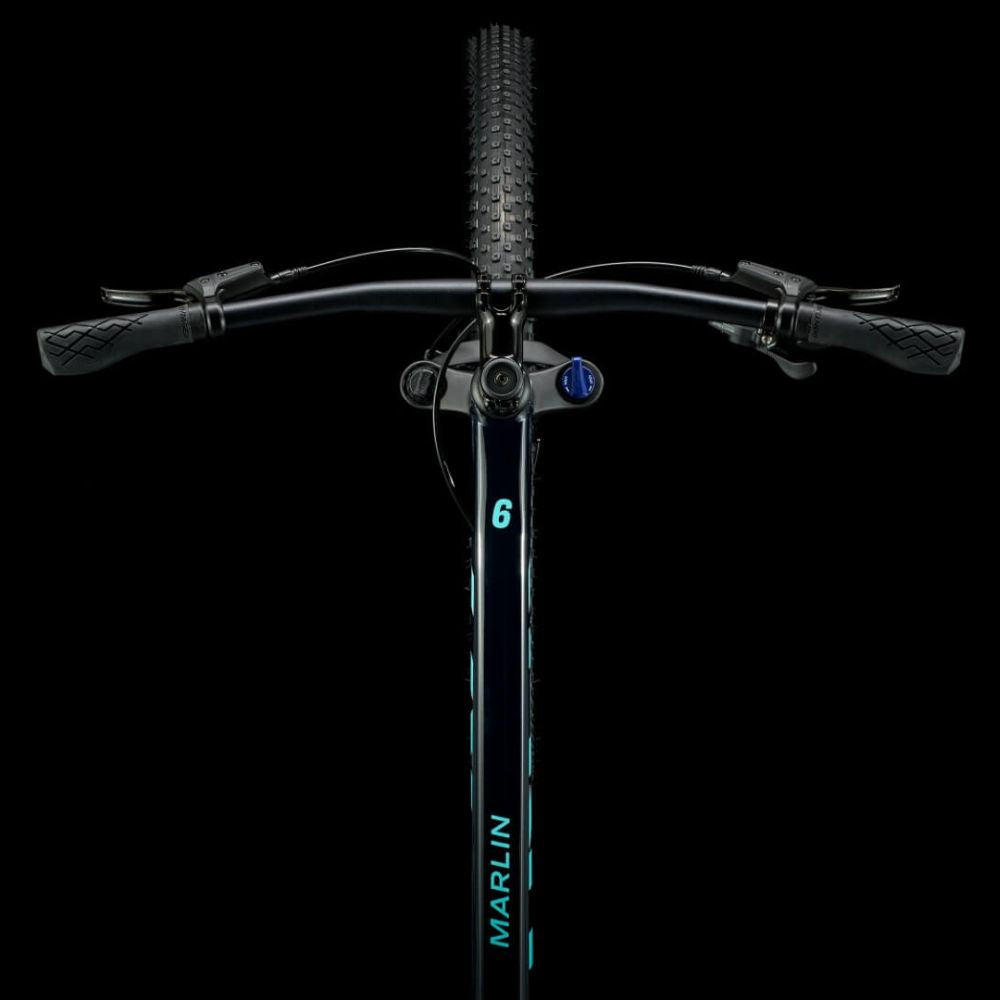

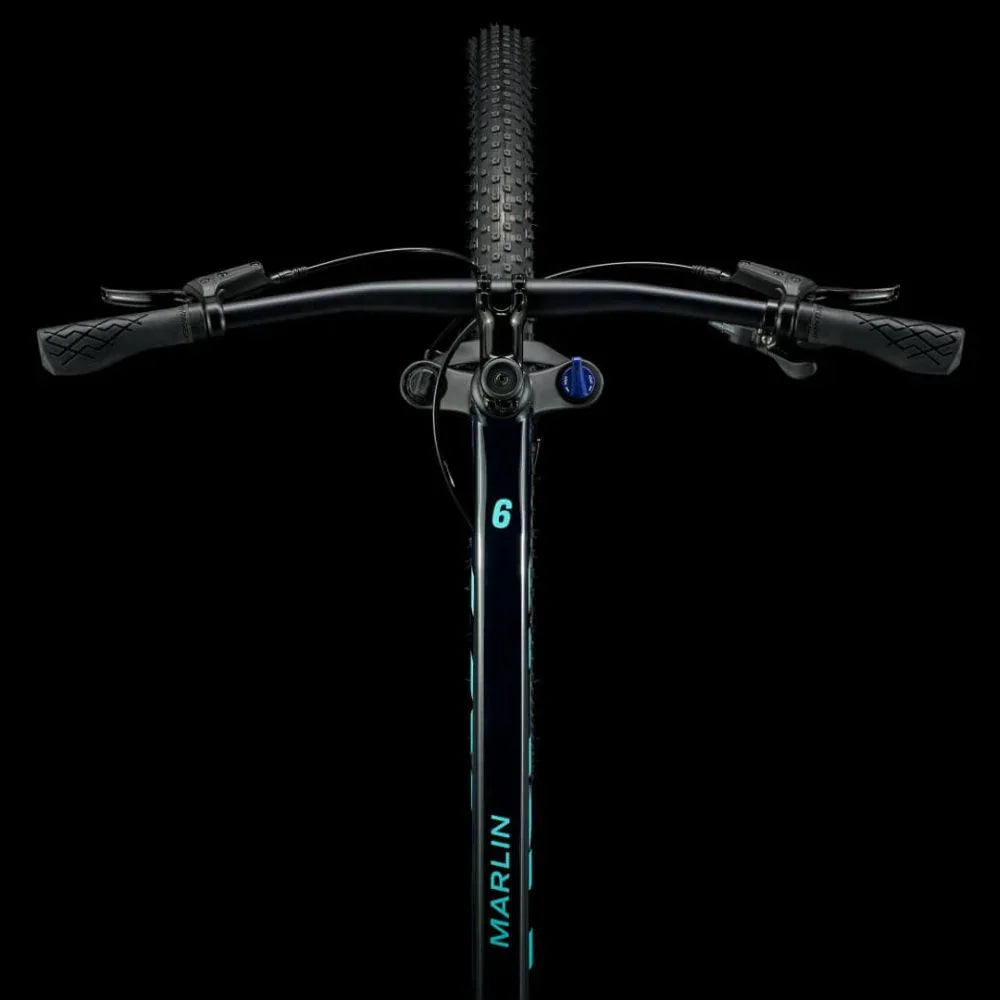

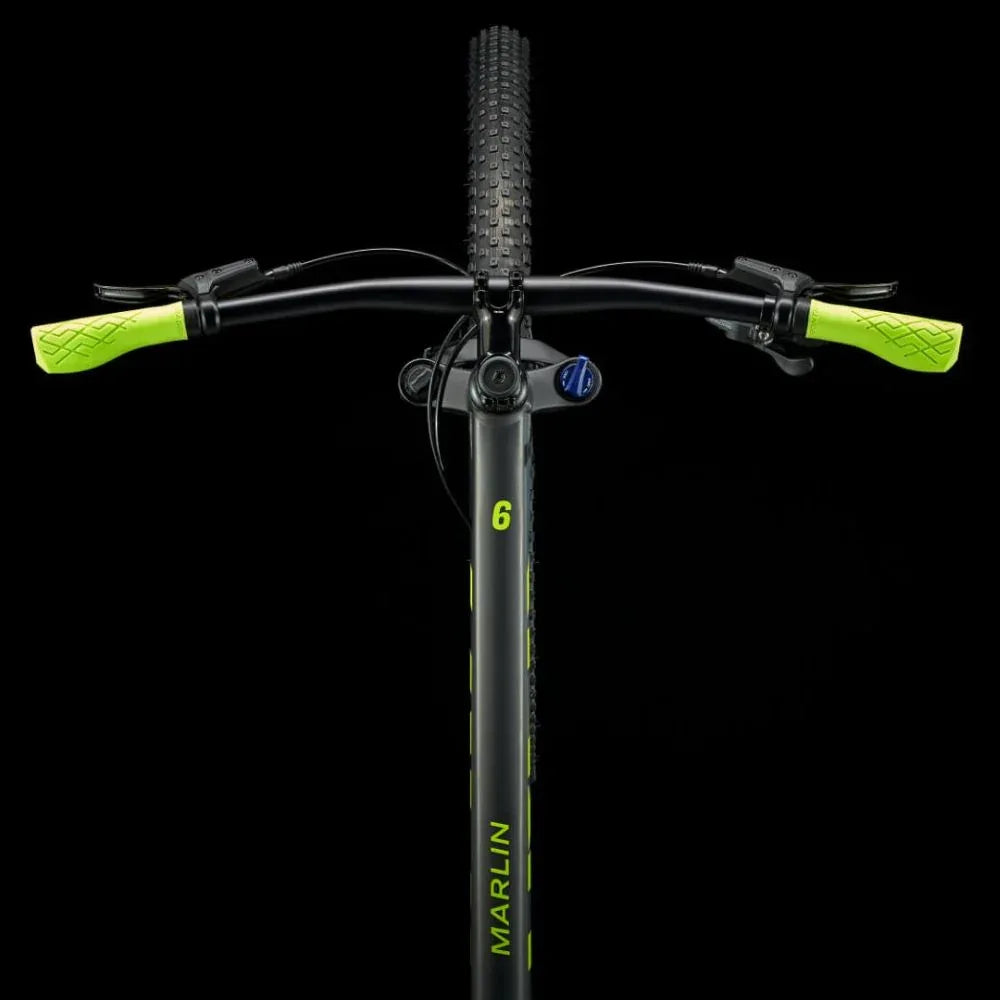

כידון |
גודל: XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm width
גודל: S , M , ML , L , XL , XXL
Bontrager alloy, 31.8mm, 5mm rise, 720mm width
|
גריפים |
Bontrager XR Endurance Comp, lock-on
|
סטם / עמוד כידון |
גודל: XS
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
גודל: S
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length
גודל: M
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length
גודל: ML, L
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length
גודל: XL , XXL
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length
|
הד-סט / מיסבי היגוי |
Semi-integrated, 1-1/8''
|

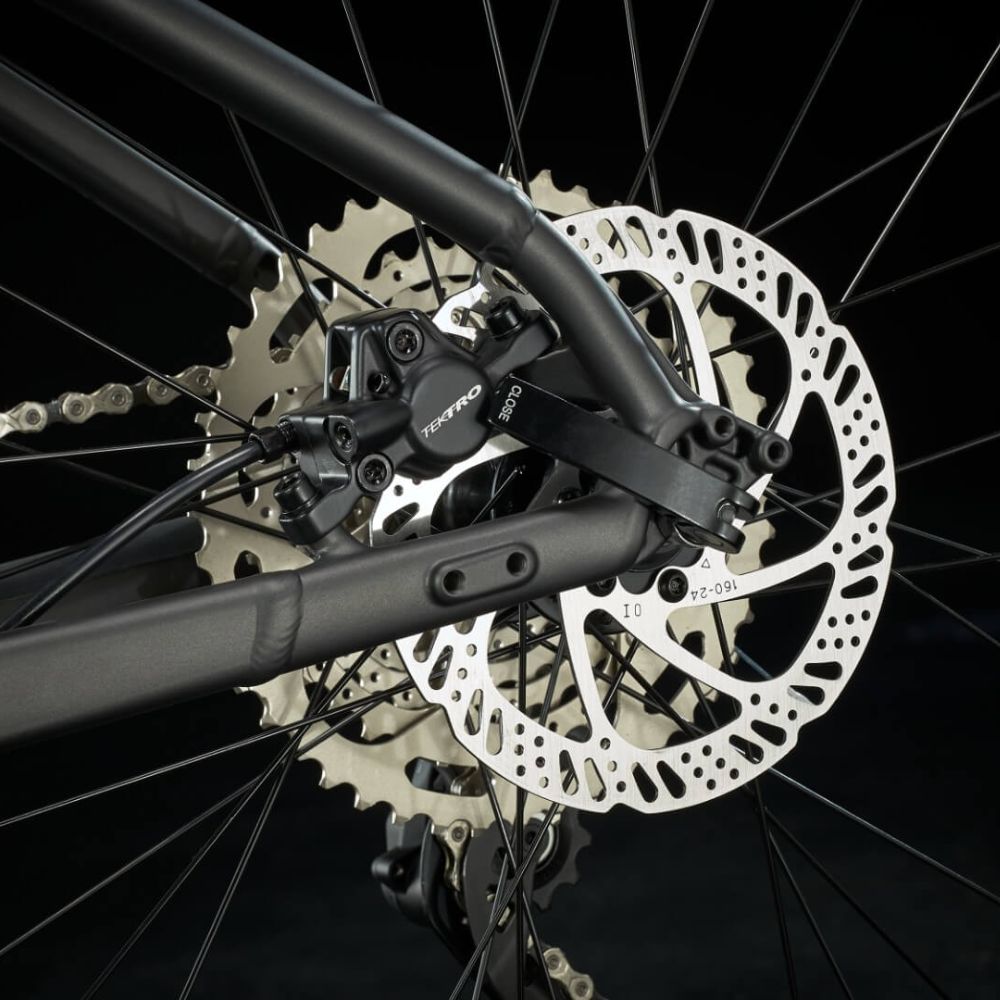

מעצורים |
גודל: XS , S
Tektro HD-M276 hydraulic disc, short reach lever
גודל: M , ML , L , XL , XXL
Tektro HD-M275 hydraulic disc
|
משקל: |
M - 14.11 kg |
